Hot Dipped Galvanized Straight Beam Trailer Axles For Australia

Australia straight solid beam trailer axles are mainly used for light trailers and agricultural trailers.

Beam size list and match capacity as below

A type

• round 39/square 40, capacity 750kg/1000kgs

B type

• round 45/square 45, capacity 1400kgs

B parallel

• round 45 parallel/square 45 parallel/round 50/square 50, capacity 1600kgs

D type

• round 50/square 50, capacity 2500kgs

E type

• round 60/square 60, capacity 3500kgs

Capacity for A, B, B Parallel and D type axles are based on upon max. axle length 1750mm

Capacity for E type axles are based on upon max. axle length 2000mm

Round 45 and 50mm is only available as stub axles

Greater loads may be carried for non-fast speed applications.

• complete hot-dipped galvanized axle beam, including brake bracket and spring set.
• complete hot dipped caliper body
• caliper mounting plate galvanized before assembling, caliper mounting size 89.50mm, could exchange mechanical brake or hydraulic brake
• non-asbestos brake pads

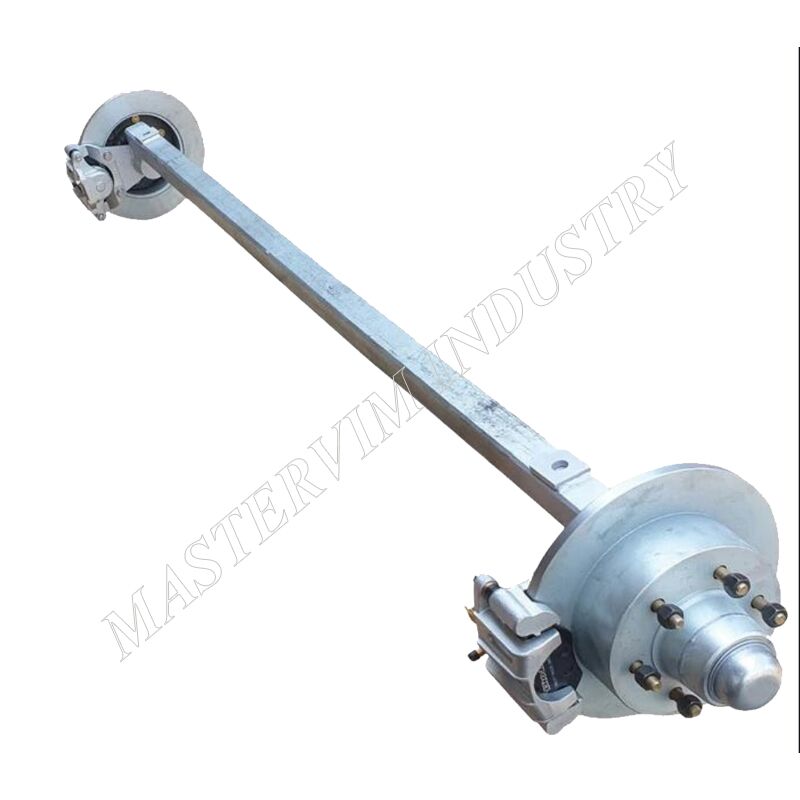

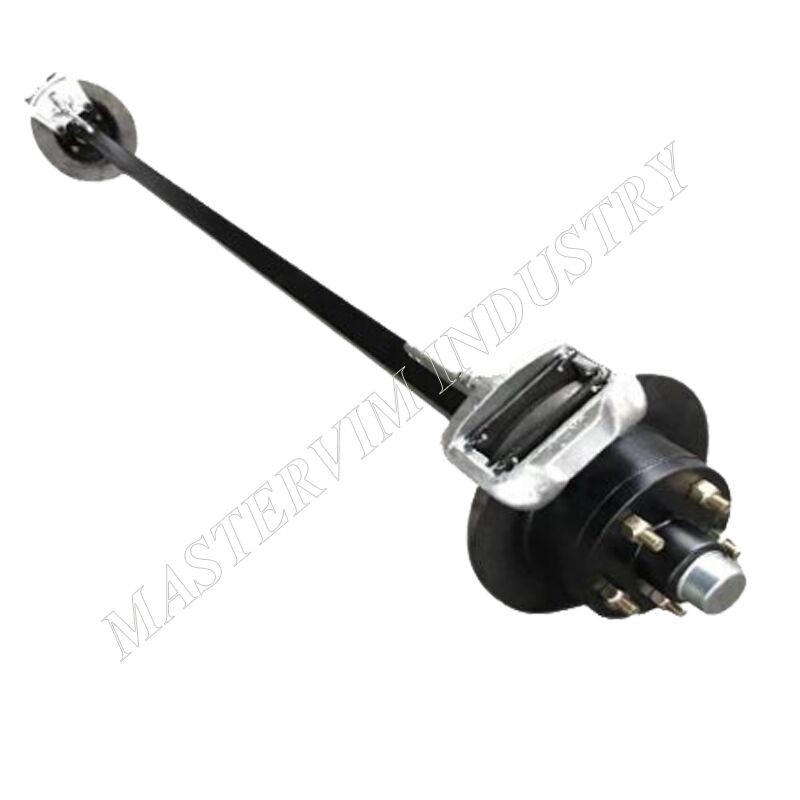

• mechanical disc brake/ hydraulic disc brake /electric brake optional
• water-proof Australia seal, bearing 68149/10, 12749/10
