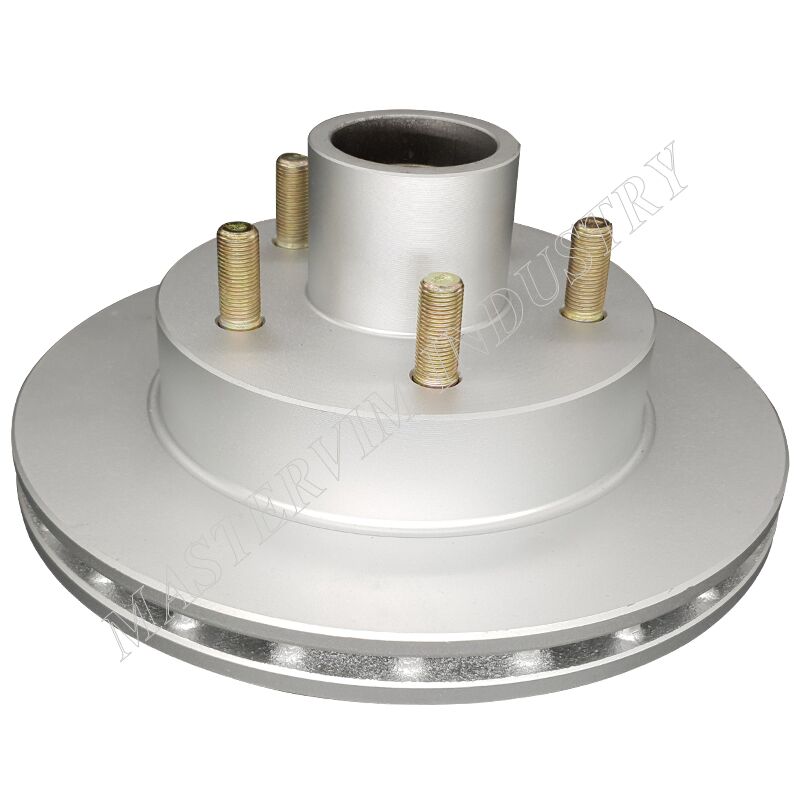

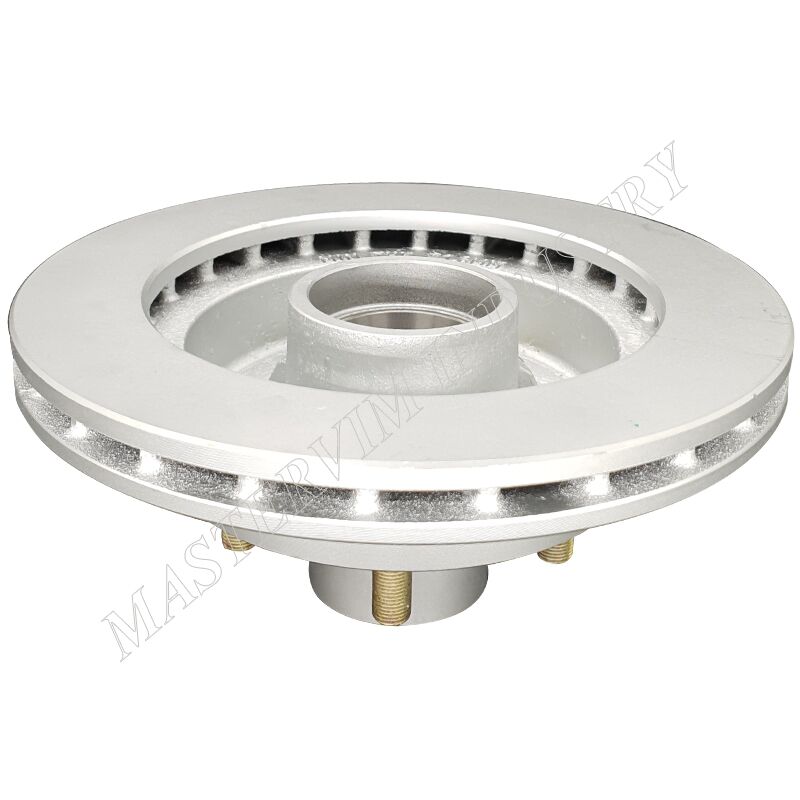

Boat Trailer 10inch 5 on 4.5 Hub Rotor For U.S Trailer Replacement

Facebook
Twitter
LinkedIn
WhatsApp
Email

Mastervim 10inch integral rotors used for boat trailer axles with hydraulic brakes. Load capacity at 3500 lbs axles.

Inner bearing L68149, outer bearing L44649, includes bearing race, grease seal, rubber grease cap, lug nuts, castle, split pin, oil seal, washer full kit.

Salt spray test 500h

Additional information

Item

Integral brake rotors

Bolts Number

5

Load

3,500 lbs.

Surface

Common black, Gal. / Dacromet

Material

G3000

Weight

15.70 lbs, 7.15 kgs

Replacement

U.S boat trailers

Manufacturer

Mastervim

Product Process

Heating qualified metal – heating tools – Casting – X-ray test – Shoot surface – Machining – Clean and dry – Painting – Assembling bearing, bolts – Packing

Product Details:

Mastervim 10inch integral rotors used for boat trailer axles with hydraulic brakes. Load capacity at 3500 lbs axles, U.S boat trailer replacement

Inner bearing L68149, outer bearing L44649, includes bearing race, grease seal, rubber grease cap, lug nuts, castle, split pin, oil seal, washer full kit.

Mainly Specifications:

  • Material: G3000 material
  • 5 bolts on 4.5inch or 114.3mm
  • Outer/ Inner bearing: L68149/ L44649
  • Load capacity: 3,500 lbs.
  • Suitable wheels: 13inch- 15inch
  • Bolts tread: 1/2inch
  • Includes complete hub parts
  • Warranty: 1 year
  • Service: O.E.M or customized as request
  • Packing: Pallets or boxed individual
  • Original: Made In China
  • Match: Suitable for all U.S axles
  • Additional parts: caliper 225, bracket
