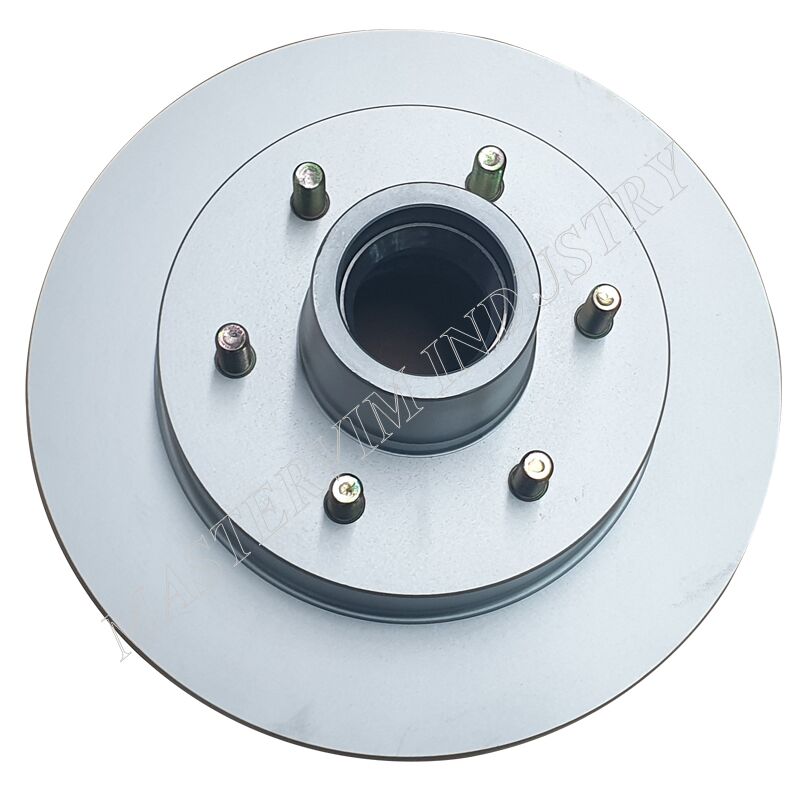

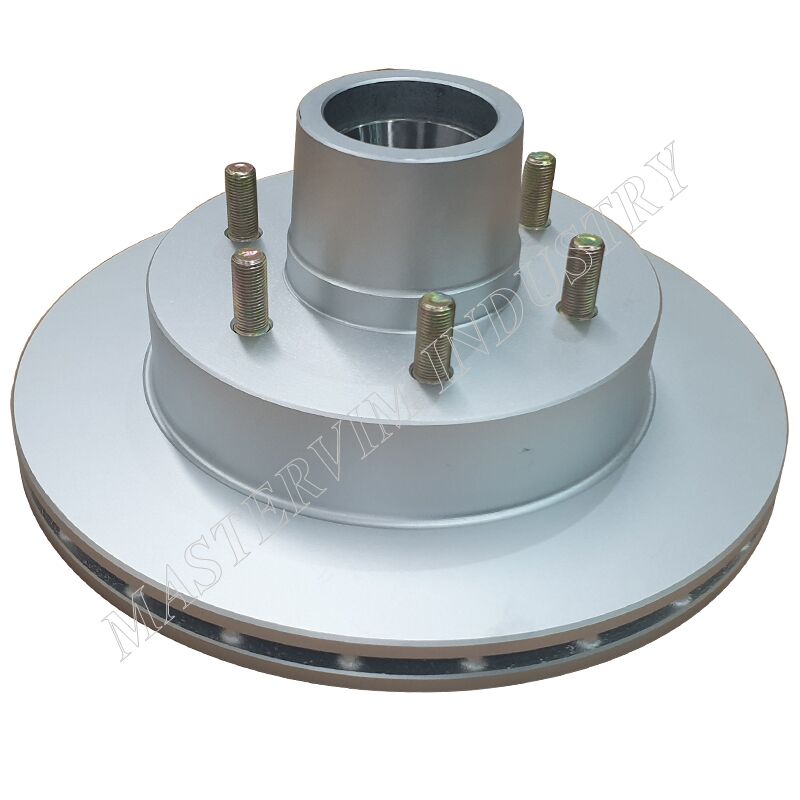

Boat Trailer Hydraulic Disc Brakes Rotor 12inch Integral Hub and Rotor

Facebook
Twitter
LinkedIn
WhatsApp
Email

Mastervim 12inch integral rotors used for boat trailer axles with hydraulic brakes. Load capacity at 5,200 6,000 lbs axles.

Inner bearing L15123, outer bearing L25580, includes bearing race, grease seal, rubber grease cap, lug nuts, castle, split pin, oil seal, washer full kit.

Additional information

Item

Integral brake rotor

Bolts Number

6

Load

5,200 lbs., 6,000 lbs.

Surface

Common black, Gal. / Dacromet

Material

G3000

Weight

11.8 kgs, 26.0 lbs

Replacement

u.s boat trailers

Manufacturer

Mastervim

Product Process

Heating qualified metal – heating tools – Casting – X-ray test – Shoot surface – Machining – Clean and dry – Painting – Assembling bearing, bolts – Packing

Product Details:

Mastervim 12inch integral rotors used for boat trailer axles with hydraulic brakes. Load capacity at 6000 lbs axles.

Inner bearing L15123, outer bearing L25580, includes bearing race, grease seal, rubber grease cap, lug nuts, castle, split pin, oil seal, washer full kit.

Mainly Specifications:

  • Material: G3000 material
  • 6 bolts on 5.5inch or 139.7 mm
  • Outer/ Inner bearing: L25580/ L15123
  • Load capacity: 5,200 – 6,000 lbs.
  • Suitable wheels: 14inch- 16inch
  • Bolts tread: 1/2inch
  • Includes complete hub parts
  • Warranty: 1 year
  • Service: O.E.M or customized as request
  • Packing: Pallets or boxed individual
  • Original: Made In China
  • Match: Suitable for all U.S axles and slip over brakes
