Product Process
Heavy-duty air disc brake calipers adopted a forged cold extrusion process, ensuring high strength and stable quality.
The shipping cost falling now, it’s a good time to make a plan.
The shipping cost falling now, it’s a good time to make a plan.

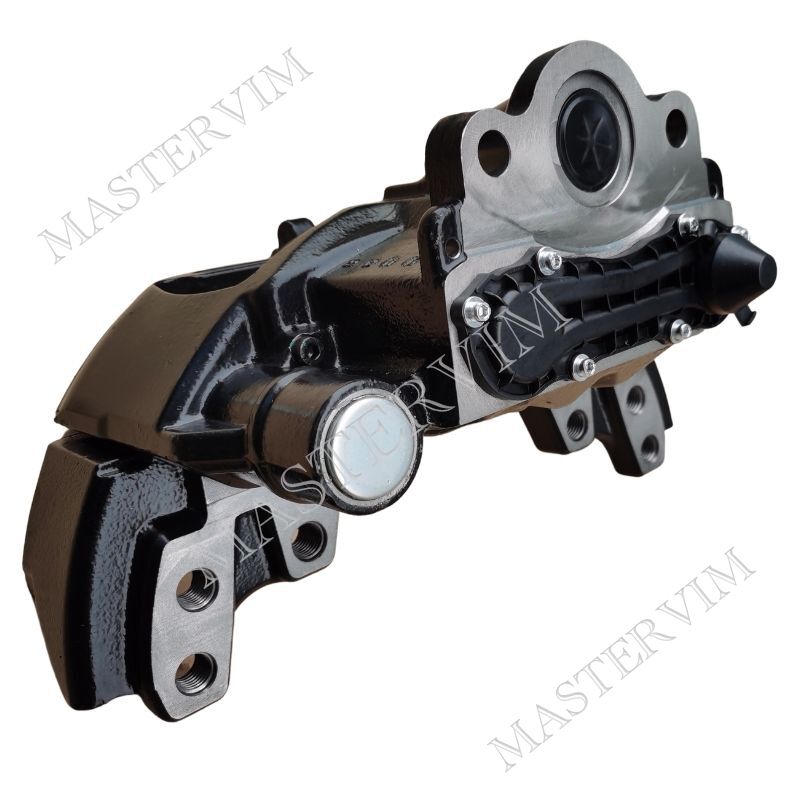

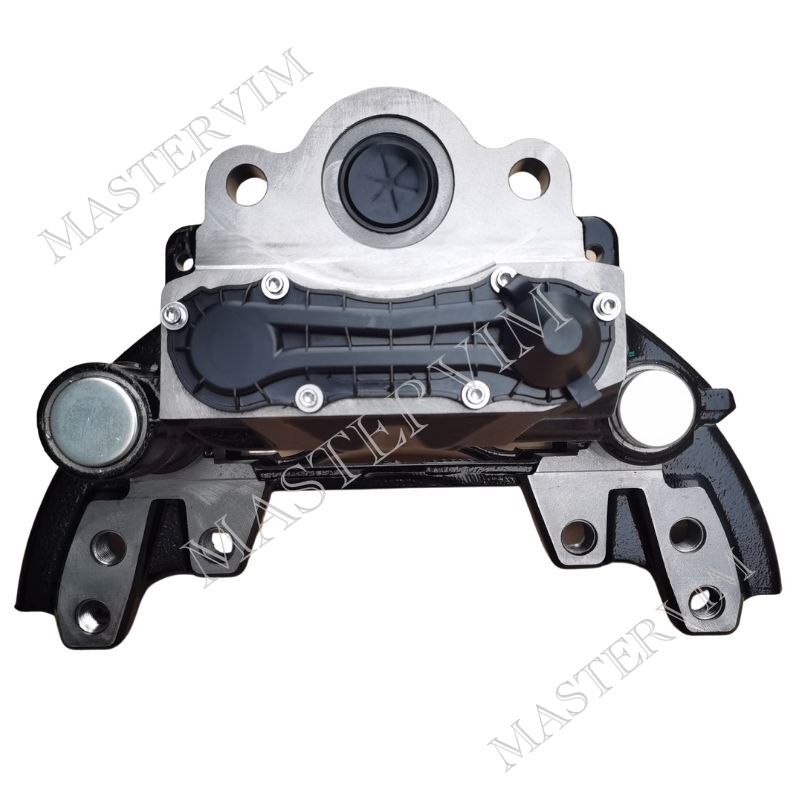

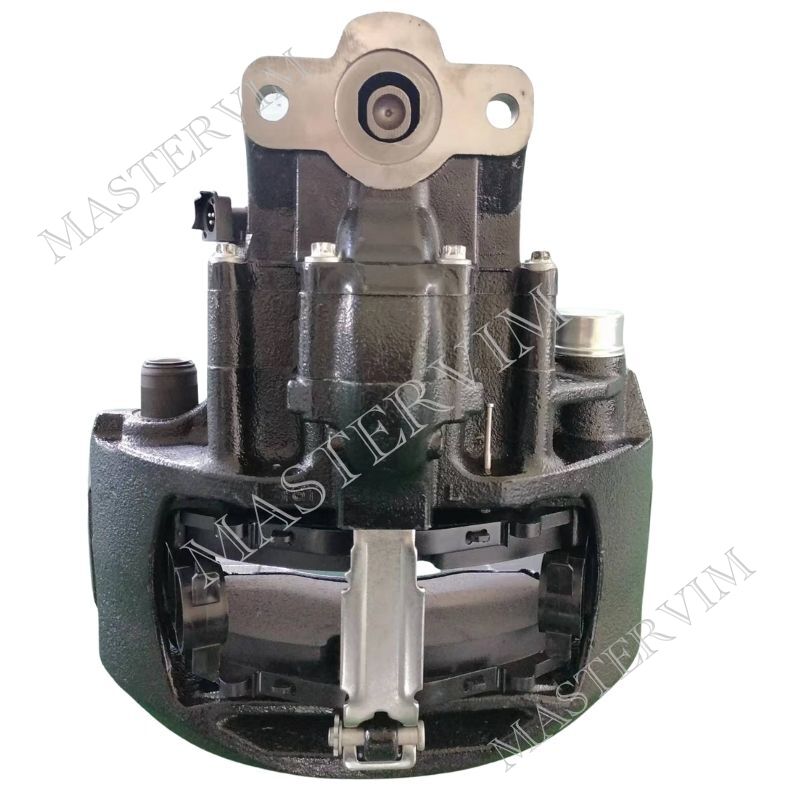

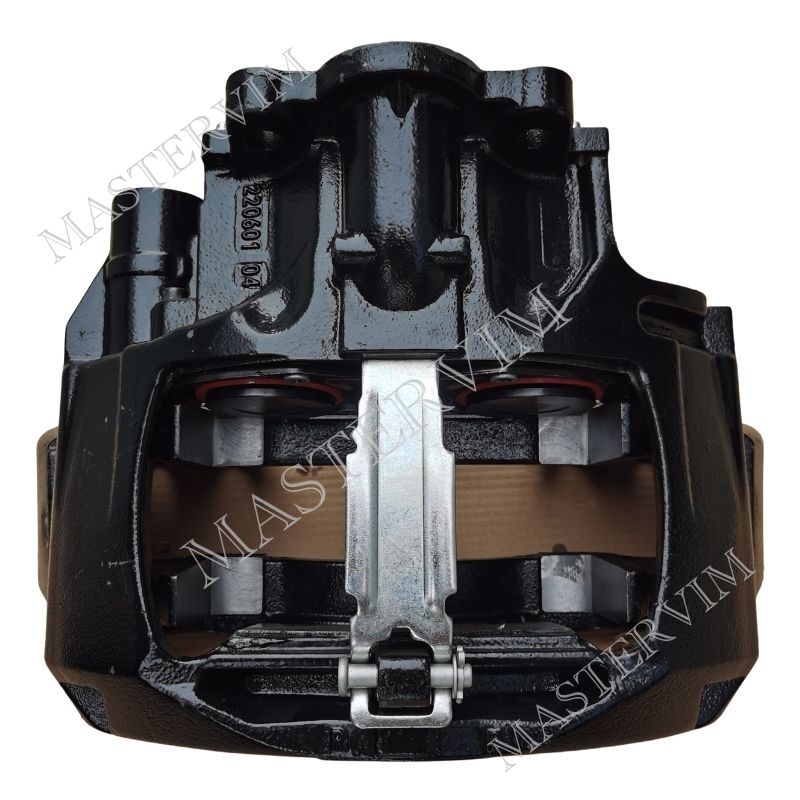

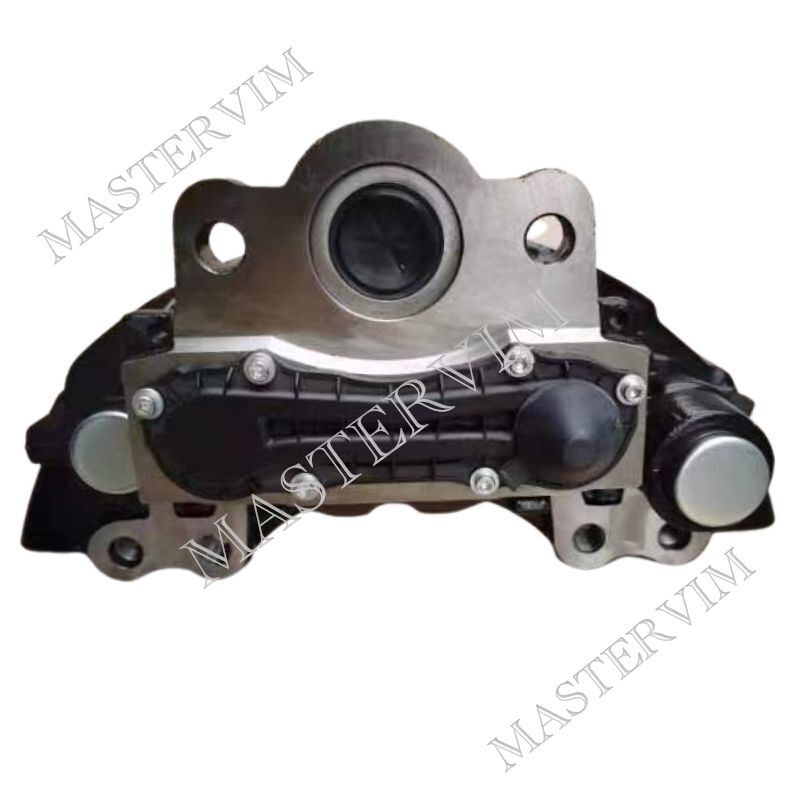

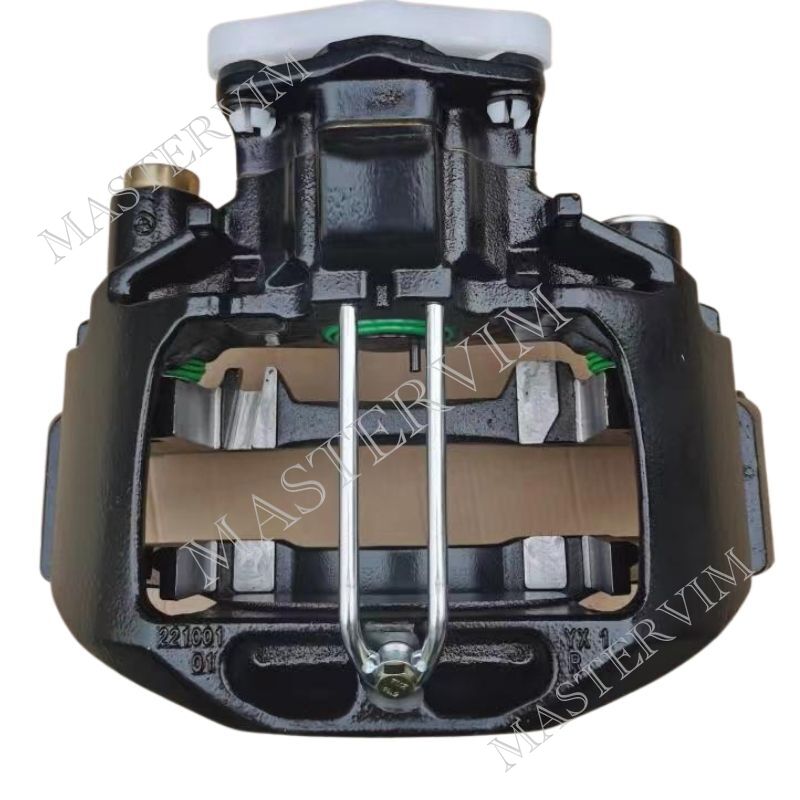

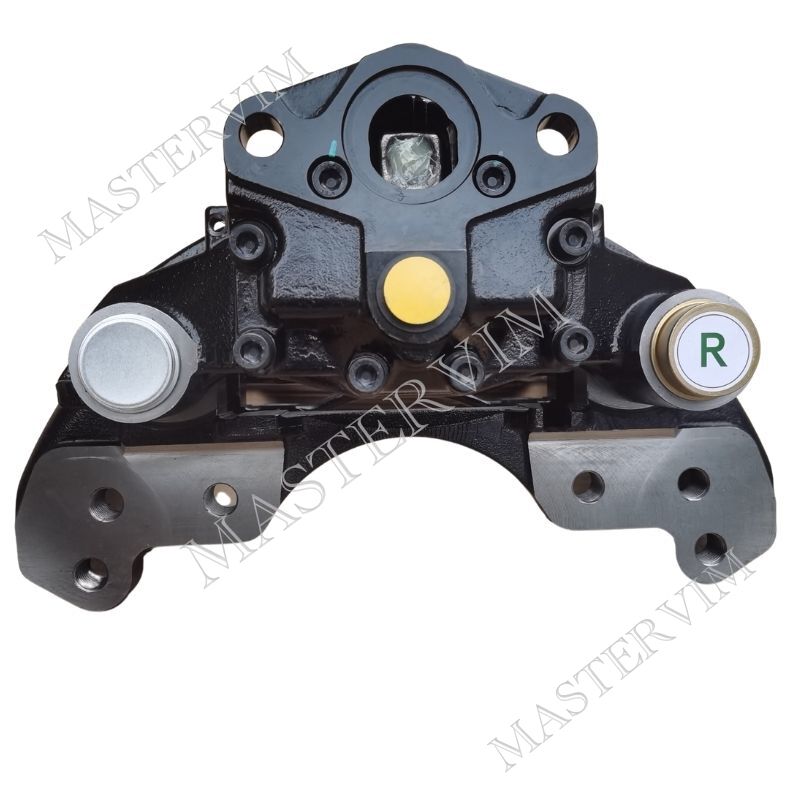

Heavy-duty air disc brake caliper made of forged steel, and exchange used for original and aftersale market
| Items | Air disc brake caliper |
|---|---|
| Application | Brake disc caliper |
| Material | Steel |
| Manufacturer | Mastervim |
| 1. Adjuster Cap
2. Chain Cover Bolt 3. Chain Cover 4. Chain 5. Sprocket 6. Pad Wear Warning Indicator Pin 7. Secondary Adjuster Asssembly 8. Primary Adjuster Assembly 9. Housing 10. Needle Bearing 11. Side Plug |
12. Short Guide Sleeve Bolt
13. Short Guide Sleeve 14. Short Guide Sleeve Bush 15. Long Guide Sleeve End Cap 16. Long Guide Sleeve Bolt 17. Long Guide Sleeve 18. Brass Bush 19. Guide Sleeve Boot 20. Guide Sleeve Boot Washer 21. Pad Retainer 22. Pad Retainer Clip |
23. Pad Retainer Washer
24. Pad Retainer Pin 25. Lever Assembly 26. Lever Roller 27. Actuation Block 28. Piston 29. Return Spring 30. Tappet Bush 31. Secondary Seal 32. Cover Plate 33. Tappet Boot Assembly |
34. Cover Plate Bolt
35. Air Chamber 36. Inboard Pad 37. Outboard Pad 38. Carrier 39. Brake Disc 40 Hub Assembly
|
Heavy-duty air disc brake calipers adopted a forged cold extrusion process, ensuring high strength and stable quality.
And high-precision test worktable
Mastervim is an original manufacturer of trailer axles and brakes. No matter what style of axles & brakes you want, based on our extensive experience, we can manufacture it.
