Product Process
Design and manufacturing-Steel billet cutting and heating-Forging-Cleaning-Heat treatment-Shot blasting-Processing-Surface treatment-QC-Package and delivery
The shipping cost falling now, it’s a good time to make a plan.
The shipping cost falling now, it’s a good time to make a plan.

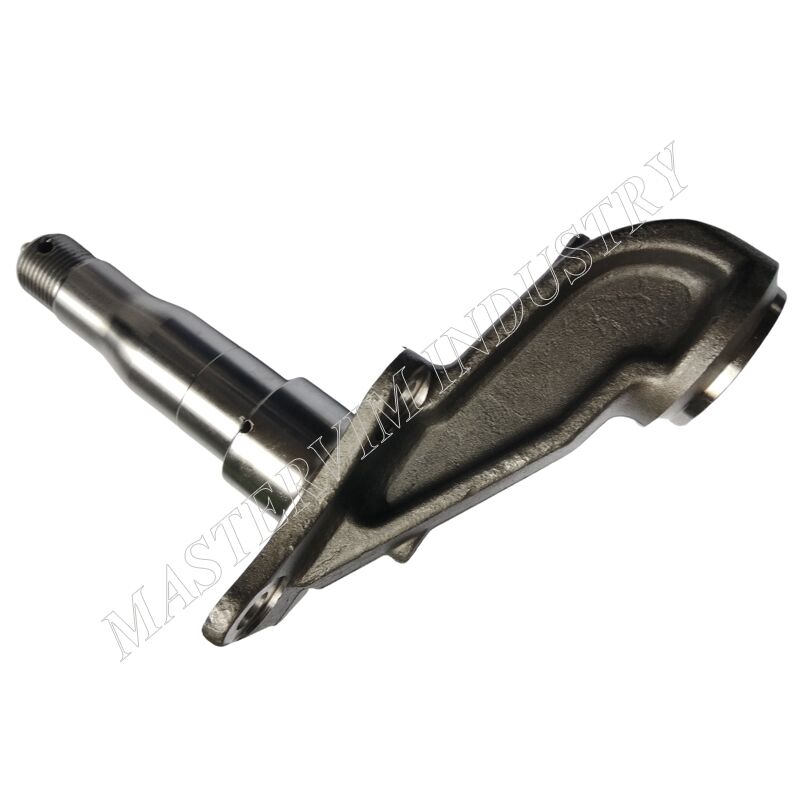

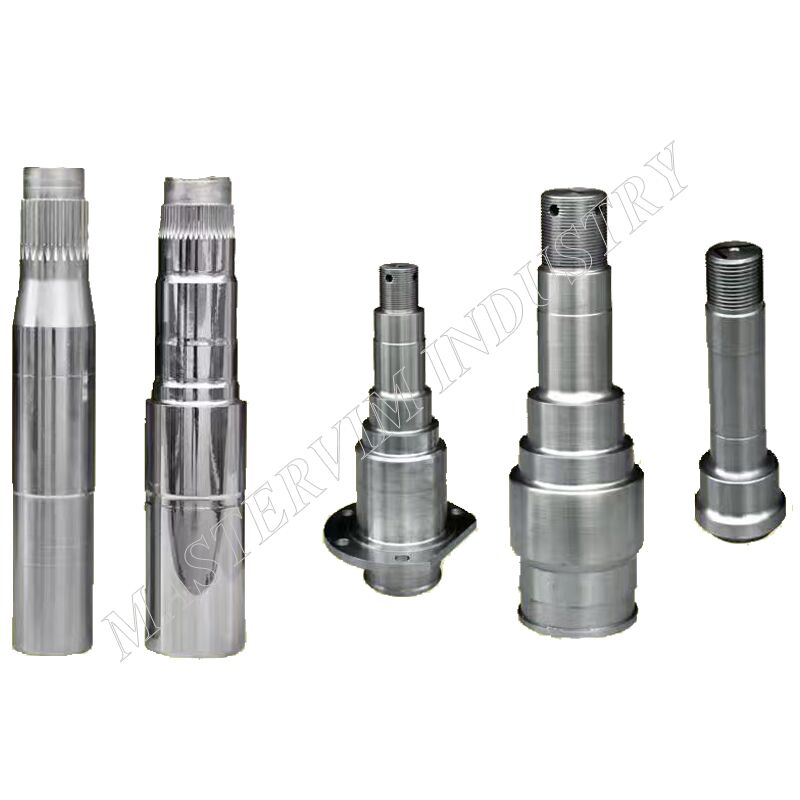

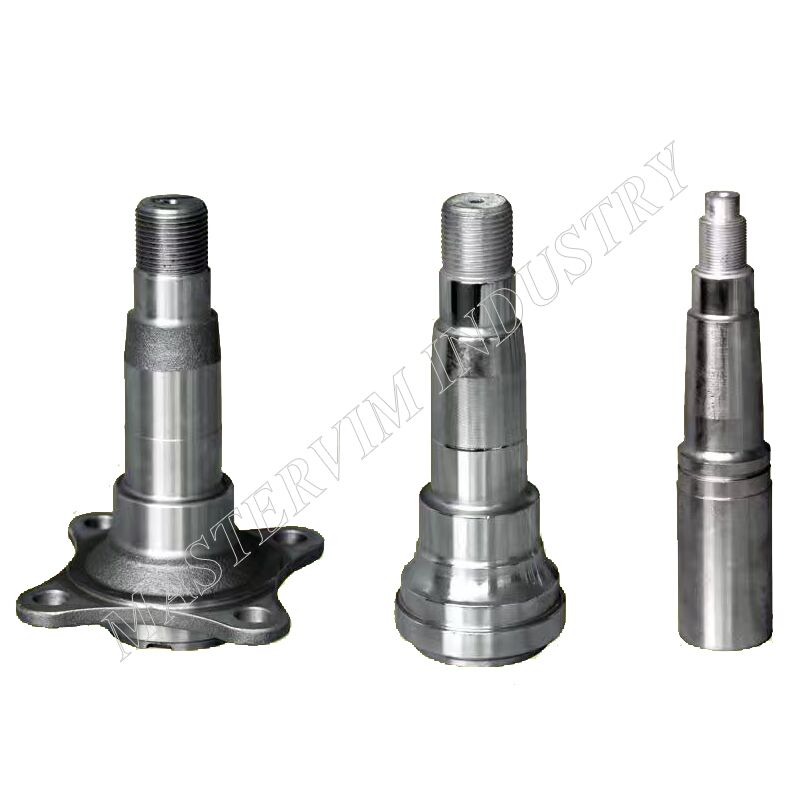

Mastervim forging axle spindles used on 2 ends of axles, stand capacity on rotating parts, especially for bearing position.
Forging spindle really strong and harden, durable and longer life-time based on excellent mechanical performance, supply higher impact capacity and reduce axle spindle wear.
| Item | Forging axle spindles |
|---|---|
| Material | 1035 |
| Precison | 0.01mm |
| Manufacturer | Mastervim |
Mastervim forging axle spindles used on 2 ends of axles, stand capacity on rotating parts, especially for bearing position.
Forging spindle really strong and harden, durable and longer life-time based on excellent mechanical performance, supply higher impact capacity and reduce axle spindle wear.
Solution: Automobile axle
Dia. 31.80mm, castle M16x2 UNF, parallel bearing dia. 24.95mm, seal dia. 30mm
Dia. 39mm, castle 3/4″-16UNF, inner bearing dia. 19.04mm 31.74mm, seal dia. 37.45mm
Dia. 45mm, castle 1″-14 UNF, inner bearing dia. 26.98mm 34.98mm, seal dia. 43.70mm
Dia. 60mm, castle 1″-14 UNF, inner bearing dia. 31.74mm 44.44mm, seal dia. 57.15mm
SQ 45mm, castle 3/4″-16 UNF, inner bearing dia. 19.04mm 31.74mm, seal dia. 37.45mm
SQ 45mm, castle 3/4″-16 UNF, inner bearing dia. 21.96mm 34.96mm, seal dia. 43.20mm
Dia. 45mm, castle 1″-14 UNF, inner bearing dia. 26.98mm 34.98mm, seal dia. 43.70mm
SQ 50mm, castle 1″-14 UNP, parallel bearing dia. 35.00mm, seal dia. 43.4mm
SQ 50mm, castle 1″-14 UNF, inner bearing dia. 31.74mm 44.00mm, seal dia. 48.50mm
forging producs much thinner than casting products based on products request same capacity, as casting product produced on nature pressure than forged products produced by heavy duty press machine, so forged products lightweight.
160tons, 300 tons, 400 tons, 630 tons, 1000 tons, 1600 tons, and 2500 tons press machines impact after raw material heating, will increase the metal parts tensile strength, metallographic structure more stable.
Forging metal products don’t have to waste much power compared to casting, and design tolerances closer, casting raw has shrinkage on surface, so have to produce bigger.
Forging products with high yield rate. The processing and technical parameters are qualified.
Aerospace Automotive Burners Defense
Electronics Farm Machinery Food & Beverage
Heavy Machinery Industrial Machine Tool
Medical Tools Military Mining Nuclear
Oil & Gas Optics Packaging Petroleum
Power Generation Pressure Vessel Pumps
Recreation Valves
Mastervim is an original manufacturer of trailer axles and brakes. No matter what style of axles & brakes you want, based on our extensive experience, we can manufacture it.
