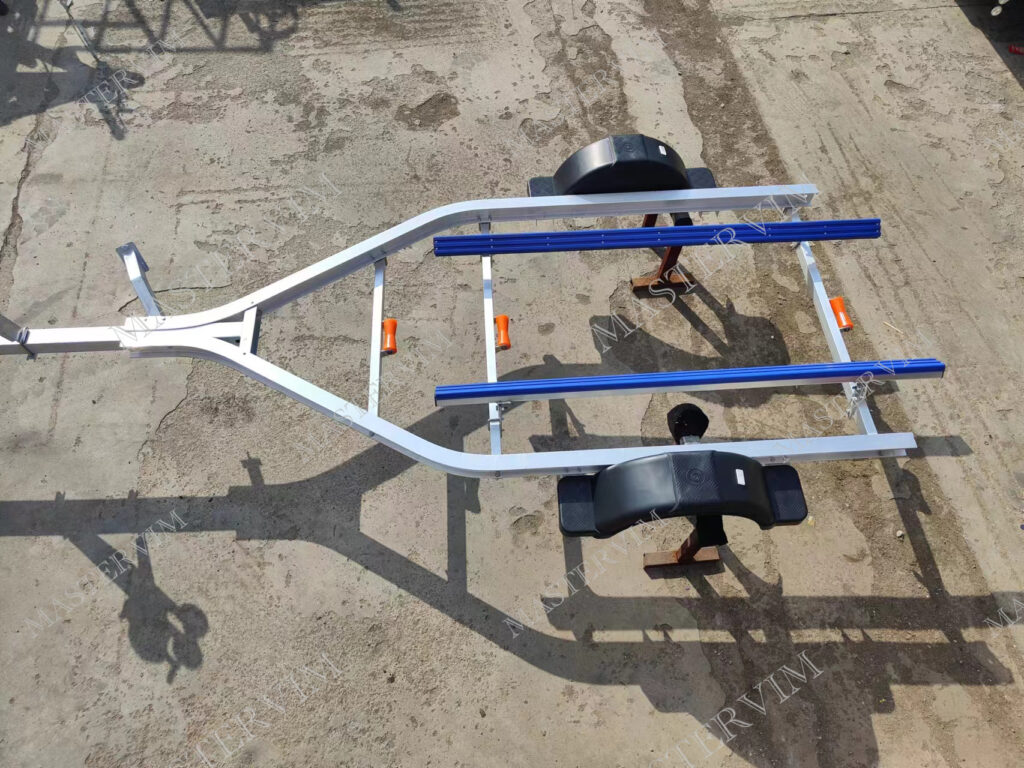

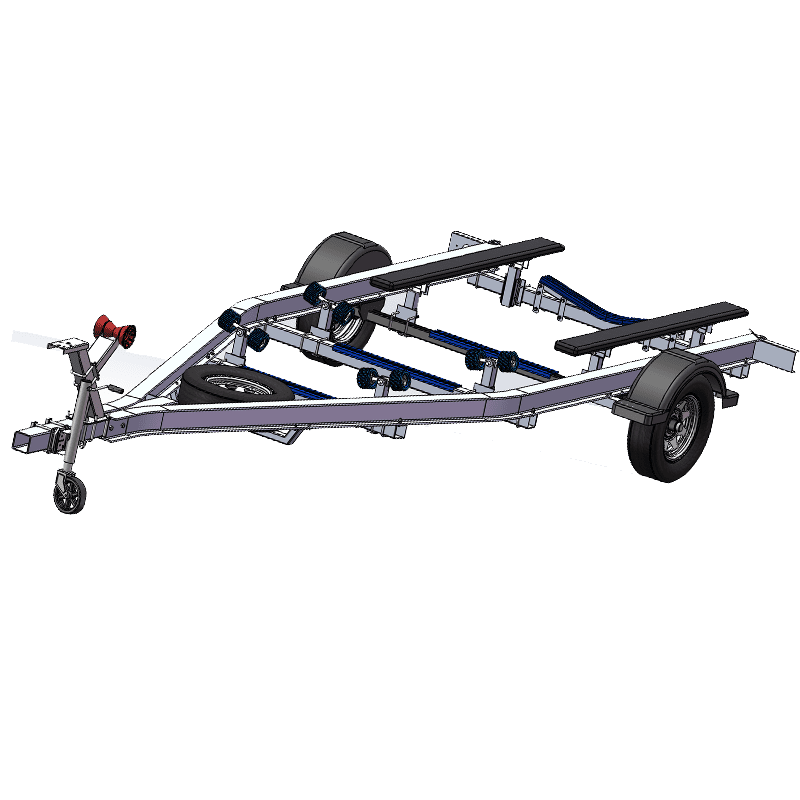

T6061 Aluminum Boat Trailer Chassis

Facebook
Twitter
LinkedIn
WhatsApp
Email

Mastervim aluminum boat trailers designed for 1 axles, 2 axles, 3 axles and even 4 axles, load capacity from 1,500 lbs 3,500 lbs 5,200 lbs 6,000 lbs 7,000 lbs up to 24,000 lbs. Customized size, we could design the trailers based on your boat size and your habit.

Additional information

Material

T6061 aluminum

Dimension

5737x2300mm, 6250x2300mm, 7066x2300mm

Color

Original

Load

1,500 lbs., 12,000 lbs., 14,000 lbs, 18,000 lbs., 21,000 lbs, 3,500 lbs., 5,200 lbs., 6,000 lbs., 7,000 lbs.

Axles No.

1pcs, 2pcs, 3pcs

Manufacturer

Mastervim

Product Process

Before Produce: Communication, Design, Make CAD or 3D model, Discuss, Improve, Agreed. Produce Status: Cutting, Bending, Drilling, QC, Assembling, QC, Packing, Shipping

Product Details:

Mastervim aluminum boat trailers designed for 1 axles, 2 axles, 3 axles and even 4 axles, load capacity from 1,500 lbs 3,500 lbs 5,200 lbs 6,000 lbs 7,000 lbs up to 24,000 lbs

Customized size, we could design the trailers based on your boat size and your habit.

Trailer List

  • 4.5 meters boat use trailer size 5737 x 2300mm
  • 5.0 meters boat use trailer size 6248 x 2300mm
  • 5.8 meters boat use trailer size 7066 x 2300mm

Mainly Advantages:

  • Material: T6061 high strength extrusion aluminum frame
  • Structure: Integral welding type/ Bolts connected type optional
  • Winch: Stainless steel 316 material
  • Bolts: Stainless steel 304/316 optional

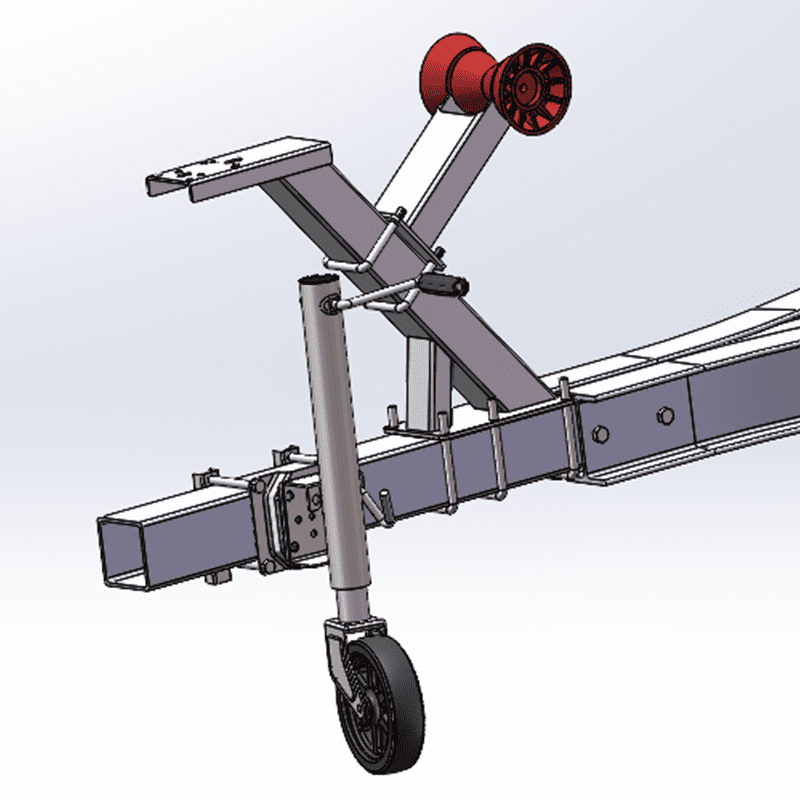

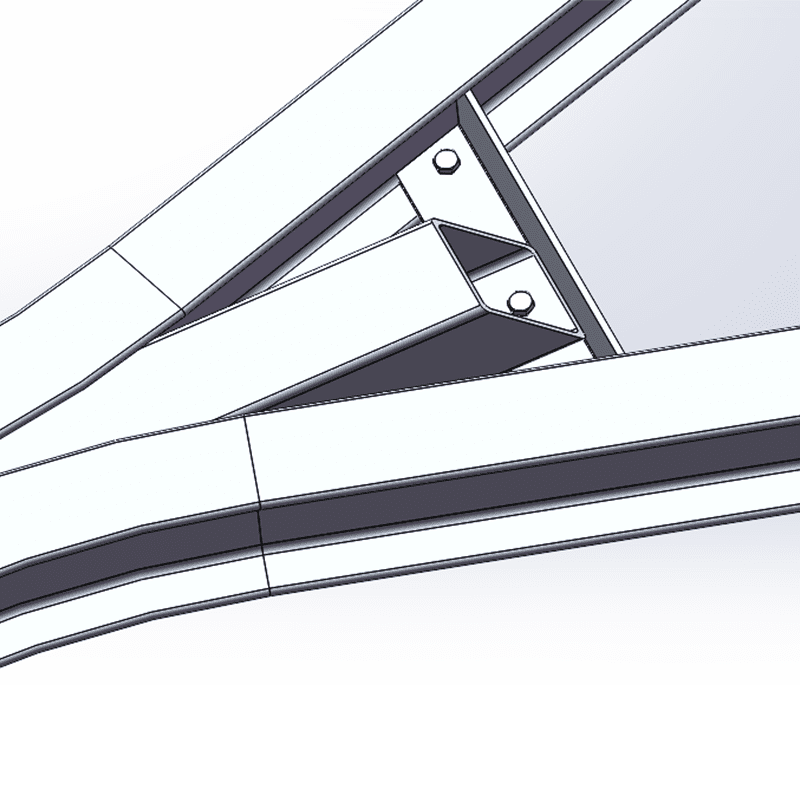

  • Hitch bar: Bolts connected with the frame
  • Jack: Galvanized trailer jack
  • Lights: DOT and E4 certificated
  • Cross members: Aluminum material fixed by bolts
  • Axle: Torsion bar U.S standard axles with hydraulic vent disc brakes, axles owned by Mastervim
  • Tires wheels: U.S DOT certificated ST tire and trailer wheels that steel wheels, and aluminum wheels optional

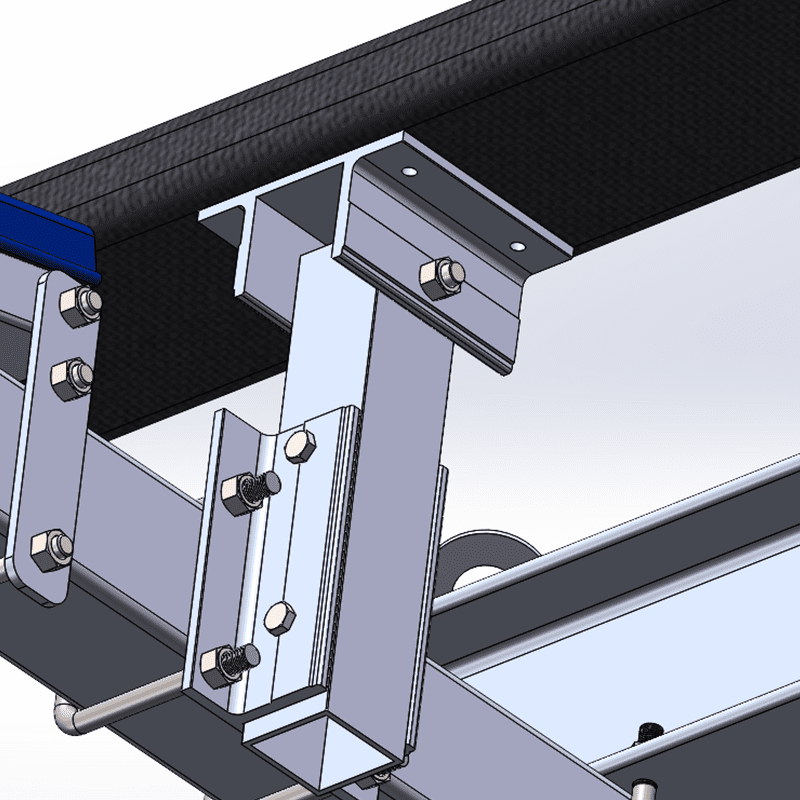

  • Bunks: Adjustable angle design
  • Bunk Material: Plywood and HDPE optional
  • Service: Branded or O.E
  • Original: Made In China
