Product Process
Heating qualified metal – heating tools – Casting – X-ray test – Shoot surface – Machining – Clean and dry – Painting – Assembling bearing, bolts – Packing
The shipping cost falling now, it’s a good time to make a plan.
The shipping cost falling now, it’s a good time to make a plan.
All electric brakes are rated at 3A @ 12V dc (per individual brake). 7.5A at 12V dc for one axle assembly.
Size with inches: 7×1-1/4″ 10×1-3/4″ 10×2-1/4″ 11×2.0″ 12×2.0″ 12×2-1/4″ 12.25×3-3/8″ , application for axle 2200lb 3500lb 4200lb 5200lb 6000lb 7000lb 8000lb 10k 12k.
Worked with brake drums, brake plate 12V, through electric brake controller, the magnet will stick on the drum backplate when switching on.
| Size | 10×1-3/4″, 10×2-1/4″, 11×2.0″, 12.25×3-3/8″, 12×2-1/4″, 12×2.0″, 7×1-1/4″ |
|---|---|
| Replacement | Dexter, ALKO, Lippert |
| Manufacturer | Mastervim |

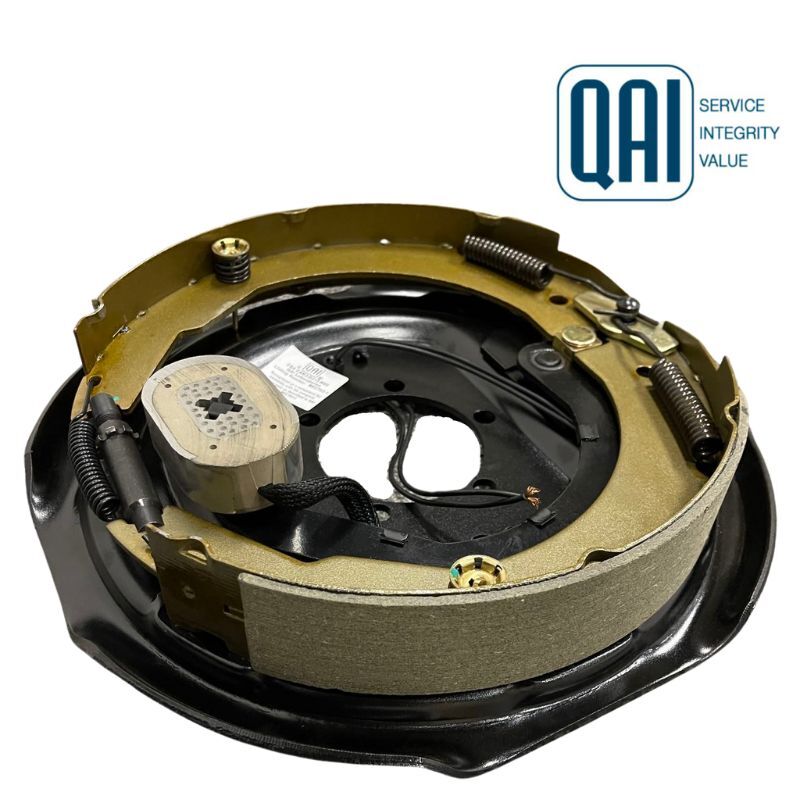

Mastervim electric brake plate with CSA QAI certificate for the North American market.
Electric brake plate suitable for axle load capacity at 2200lb 3500lb 4200lb 5200lb 6000lb 7000lb 8000lb 10k 12k
Worked with brake drums, brake plate 3A @ 12V, through electric brake controller, the magnet will stick on the drum backplate when switching on.
Mainly Specifications:
100% electromagnetism test, 100% independent production, test data keep 1.5 years.
LINK machine for brake pads inspection.
Pads material performance report
| SIZE | Specification | Details | Related Part Number |
| 7″x1-1/4″ | Brake Size :7″x1-1/4″ Capacity : 2000lb Material : Thickness : Finshed : N.W(KG)/PC : Pcs/Ctn : 1.00 Packing Size（Carton): Product Name : Electric trailer brakes kit 7″- left and right hand assemblies – 2,000lb | Driver’s-side and passenger’s-side electric brakes measure 7″ x 1-1/4″. Brake pads are made of durable friction material for improved braking and longevity. E-coated backing plates resist rust. Fit 10″ to 13″ wheels. Application: most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO Dimensions: 7″ diameter x 1-1/4″ wide Mounting flange bolt pattern: 4 bolt Wheel size: 10″ 12″ and 13″ Axle rating: 2,000 lbs Limited 1-year warranty | B07E-21 B07E-22 23-47 23-48 |
| 10″x2-1/4″ | Brake Size : 10″x2-1/4″ Packing : 113*90*110CM:168PCS 113*117*110cm:224pcs Capacity : 3500lb Material : Thickness : Finshed : N.W(KG)/PC : 4.4 Pcs/Ctn : 1.00 Packing Size（Carton) : Product Name : Electric trailer brakes kit 10″- left and right hand assemblies – 3,500lb | Driver’s-side and passenger’s-side electric brakes measure 10″ x 2-1/4″. Brake pads are made of durable friction material for improved braking and longevity. E-coated backing plates resist rust. Fit 14″ to 15″ wheels. Application: most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO Dimensions: 10″ diameter x 2-1/4″ wide Mounting flange bolt pattern: 4 bolt Wheel size: 14″ and 15″ Axle rating: 3,500 lbs Limited 1-year warranty | B10E-21 B10E-22 23-26 23-27 |
| 10″x2-1/4″ | Brake Size : 10″x2-1/4″ Packing : 113*90*110CM:168PCS 113*117*110cm:224pcs Capacity : 3500lb Material : Thickness : Finshed : N.W(KG)/PC : 4.4 Pcs/Ctn : 1.00 Packing Size（Carton) : Product Name : Electric trailer brakes kit self-adjusting 10″- left and right hand assemblies – 3,500lb | Self-adjusting driver’s-side and passenger’s-side electric brakes are 10″ x 2-1/4″. Brake pads are made of friction material for improved braking and longevity. E-coated backing plates resist rust. Fit 13″ to 15″ wheels. Application: most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO Dimensions: 10″ diameter x 2-1/4″ wide Mounting flange bolt pattern: 4 bolt Wheel size: 13″, 14″, and 15″ Axle rating: 3,500 lbs Limited 1-year warranty | B10EA-21 B10EA-22 23-468 23-469 |
| 12″x2″ | Brake Size : 12″x2″ Packing : 106*102*107CM:126PCS, 20pallet/20ft 106*70*80CM:60PCS, 4 pallet/20ft Capacity : 5200-7000lb Material : Thickness : Finshed : N.W(KG)/PC : 6.7 Pcs/Ctn : 1.00 Packing Size（Carton) : Product Name : Electric Trailer Brake Kit – 12″ – Left and Right Hand Assemblies – 5,200 lbs to 7,000 lbs | Driver’s-side and passenger’s-side electric brakes measure 12″ x 2″. Brake pads are made of durable friction material for improved braking and longevity. E-coated backing plates resist rust. Fit 14-1/2″ to 16-1/2″ wheels. Application: most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO Dimensions: 12″ diameter x 2″ wide Mounting flange bolt pattern: 5 bolt Wheel size: 14-1/2″, 15″, 16″, and 16-1/2″ Axle rating: 5,200 lbs, 6,000 lbs, and 7,000 lbs Limited 1-year warranty | K23-105-00 B12E-21 B12E-22 23-105 23-106 |
| 12″x2″ | Brake Size : 12″x2″ Packing : 106*102*107CM:126PCS, 20pallet/20ft 106*70*80CM:60PCS, 4pallet/20″ Capacity : 5200-7000lb Material : Thickness : Finshed : N.W(KG)/PC : 6.7 Pcs/Ctn : 1.00 Packing Size（Carton) : Product Name : Electric Trailer Brake Kit – self-adjusting 12″ – Left and Right Hand Assemblies – 5,200 lbs to 7,000 lbs | Self-adjusting driver’s-side and passenger’s-side brakes are 12″ x 2″. Brake pads are made of durable friction material for improved braking and longevity. E-coated backing plates resist rust. Fit 14.5″ to 16.5″ wheels. Application: most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO Dimensions: 12″ diameter x 2″ wide Mounting flange bolt pattern: 5 bolt Wheel size: 14-1/2″, 15″, 16″, and 16-1/2″ Axle rating: 5,200 lbs, 6,000 lbs, and 7,000 lbs Limited 1-year warranty | B12EA-21 B12EA-22 23-465 23-459 |
| 12-1/4″x3-3/8″ | Brake Size : 12-1/4″x3-3/8″ 4 holes Packing : 100*97*106cm: 81pcs, 20pallet/20ft 100*70*106cm:54pcs, 4pallet/20″ Capacity : 8000lb Material : Thickness : Finshed : N.W(KG)/PC : 8.1 Pcs/Ctn : 1.00 Packing Size（Carton) : Product Name : Electric Trailer Brake Kit w/ Dust Shields – Self-Adjusting – 12-1/4″ – Left/Right Hand – 8K | Self-adjusting electric brakes measure 12-1/4″ x 3-3/8″. Brake pads are made of durable friction material for improved braking. E-coated backing plates resist rust. Dust shields protect from debris. Fit 15″ or larger wheels. Application: most standard hub-and-drum assemblies, including Dexter and Lippert (LCI) Dimensions: 12-1/4″ diameter x 3-3/8″ wide Mounting flange bolt pattern: 4 bolt Wheel size: 15″ or larger Axle rating: 8,000 lbs Limited 1-year warranty | B1208E-11 K23-434-00 23-434 |
| 12-1/4″x3-3/8″ | Brake Size : 12-1/4″x3-3/8″ 7 holes Packing : 100*97*106cm: 81pcs, 20pallet/20″ 100*70*106cm:54pcs, 4pallet/20″Capacity : 10,000lb Material : Thickness : Finshed : N.W(KG)/PC : 8.1 Pcs/Ctn : 1.00 Packing Size（Carton) : Product Name : Electric Trailer Brake Kit w/ Dust Shields – Self-Adjusting – 12-1/4″ – Left/Right Hand – 10K | Self-adjusting electric brakes measure 12-1/4″ x 3-3/8″. Brake pads are made of durable friction material for improved braking. E-coated backing plates resist rust. Dust shields protect from debris. Fit 15″ or larger wheels. Application: most standard hub-and-drum assemblies, including Dexter and Lippert (LCI) Dimensions: 12-1/4″ diameter x 3-3/8″ wide Mounting flange bolt pattern: 7 bolt Wheel size: 15″ or larger Axle rating: 10,000 lbs Limited 1-year warranty | B1210E-12 K23-451-00 23-451 |
| 12-1/4″*4″ | 12-1/4″*4″ 7 holes Packing : 100*97*106cm: 81pcs, 20pallet/20″ 100*70*106cm:54pcs, 4pallet/20″Capacity : 10,000lb Material : Thickness : Finshed : N.W(KG)/PC : 8.1 Pcs/Ctn : 1.00 | 12-1/4″ x 4″ Driver’s-side and passenger’s-side electric trailer brake assemblies fit 10,000-lb axles. Mounting flanges have 7-bolt pattern. Self-adjusting brakes require little maintenance. Fit 16″ or larger wheels. | K23-438-00 23-438 |
| 12-1/4″*5″ | 12-1/4″*5″ 7 holes Packing : 100*97*106cm: 81pcs, 20pallet/20″ 100*70*106cm:54pcs, 4pallet/20″Capacity : 12,000lb Material : Thickness : Finshed : N.W(KG)/PC : 8.5 Pcs/Ctn : 1.00 | Self-adjusting electric trailer brakes measure 12-1/4″ x 5″. Brake pads are made of durable friction material for improved braking. E-coated backing plates resist rust. Dust shields protect from debris. Fit 15″ or larger wheels. | K23-443-00 B1212E-22 23-443 |
| 7″ magnet kit | Replacement Magnet Kit for 7″ Electric Trailer Brake Assemblies – 2,000 lbs | 13-817 KB7E-06 | |
| 10″ magnet kit | Replacement Magnet Kit for 10″x2-1/4″ Electric Trailer Brake Assemblies – 3,500 lbs | 13-818 | |
| 12″ magnet kit | Replacement Magnet Kit for 12″x2″ Electric Trailer Brake Assemblies – 5,200 lbs to 7,000 lbs | 13-819 BP01-180 |
| 12-1/4″ magnet kit | Fits Dexter 12-1/4 x 3-3/8″ (9-10K), 12-1/4 x 4″ (10K) and 12-1/4 x 5″ (12-15K) electric brakes built after 6/92. Red and black wires. | K71-378-00 BP01-311 |
Mastervim is an original manufacturer of trailer axles and brakes. No matter what style of axles & brakes you want, based on our extensive experience, we can manufacture it.
