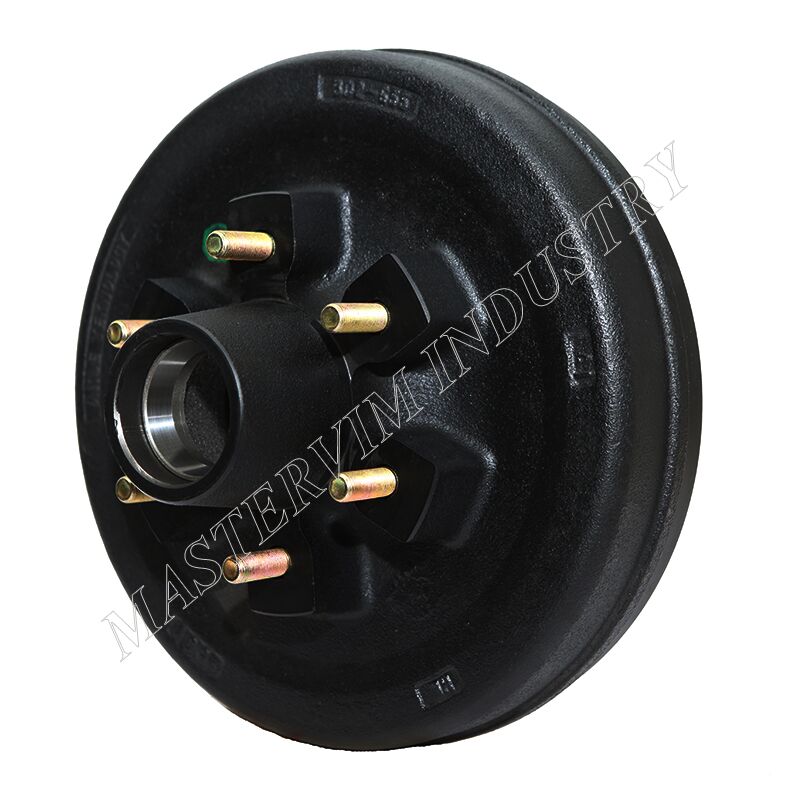

Mastervim trailer hubs drums used for trailer electric brake axles. Load capacity at 5200lbs to 6000lb axles.

Inner bearing L15123, outer bearing L25580, includes bearing race, grease seal, rubber grease cap, lug nuts, castle, split pin, oil seal, washer full kit.

Additional information

Item

Electric brake drum
Bolts Number

6
Load

5,200 lbs., 6,000 lbs.
Material

G3000
Weight

12.50 lbs, 5.67 kgs
Replacement

U.S trailer electric brakes
Manufacturer

Mastervim
ASK FOR A QUOTE

Product Process

Heating qualified metal – heating tools – Casting – X-ray test – Shoot surface – Machining – Clean and dry – Painting – Assembling bearing, bolts – Packing

Product Details:

Mastervim trailer hubs drums used for trailer electric brake axles. Load capacity at 5200lbs to 6000lb axles.

Inner bearing L15123, outer bearing L25580, includes bearing race, grease seal, rubber grease cap, lug nuts, castle, split pin, oil seal, washer full kit.

Mainly Specifications:

  • Material: G3000 material
  • 6 bolts on 5.5inch or 139.7 mm
  • Outer/ Inner bearing: L25580/ L15123
  • Load capacity: 5,200 – 6,000 lbs.
  • Suitable wheels: 14inch- 16inch
  • Bolts tread: 1/2inch
  • Includes complete hub parts
  • Warranty: 1 year
  • Service: O.E.M or customized as request
  • Packing: Pallets or boxed individual
  • Original: Made In China
  • Match: Suitable for all U.S axles and slip over brakes
Size Specification Details Part number
7″x1-1/4″  Brake Size : 7″x1-1/4″
Bolts pattern: 5 on 4.5″, 1/2″
Packing: 115*110*67CM:75PCS
30pallets/20″
Capacity : 2000lb
Material : G3000
Thickness :
Finshed   : black coating
N.W(KG)/PC : 8
Packing Size（Carton) :
Product Name : Easy Grease Trailer Hub and Drum Assembly for 2K Axles – 10″ – 5 on 4-1/2 – Pre-Greased		 L44649/L44649
OIL SEAL, DUST CUP, NUTS		 K08-257-91
8-257-5UC3
 10″x2-1/4″  Brake Size : 10″x2-1/4″
Bolts pattern: 5 on 4.5″, 1/2″
Packing : 115*110*67CM:75PCS
30pallets/20″
Capacity : 3500lb
Material: G3000
Thickness :
Finshed  : black coating
N.W(KG)/PC : 9.2
Packing Size（Carton):
Product Name : Easy Grease Trailer Hub and Drum Assembly for 3.5K Axles – 10″ – 5 on 4-1/2 – Pre-Greased		 L68149/L44649
OIL SEAL, DUST CUP, NUTS		 K08-247-90
84546UC3
84546-KIT
 10″x2-1/4″  Brake Size : 10″x2-1/4″
Bolts pattern: 5 on 4.5″, 1/2″
Packing: 115*110*67CM:75PCS
30pallets/20″
Capacity : 3500lb
Material: G3000
Thickness :
Finshed : DACRO. ZINC, GAL.
N.W(KG)/PC : 9.2
Packing Size（Carton) :
Product Name : Easy Grease Trailer Hub and Drum Assembly for 3.5K Axles – 10″ – 5 on 4-1/2 – Pre-Greased		 L68149/L44649
OIL SEAL, DUST CUP, NUTS		 K08-247-96
116640
8-247-50UC3-EZ
12″x2″  Brake Size : 12″x2″
Bolts pattern: 6 on 5.5″, 1/2″
Packing : 104*104*76CM:45pcs
30pallet/20ft
Capacity : 6000lb
Material: G3000
Thickness:
Finshed : Black coating
N.W(KG)/PC: 13.7
Pcs/Ctn : 1.00
Packing Size（Carton):
Product Name : Easy Grease Trailer Hub and Drum Assembly for 5.2K & 6K Axles – 12″ – 6 on 5-1/2 – Pre-Greased		 25580/15123
OIL SEAL, DUST CUP, NUTS		 K08-201-95
8-201-9UC3-EZ
 12″x2″  Brake Size : 12″x2″
Bolts pattern: 8 on 6.5″, 1/2″
Packing : 104*104*76CM:45pcs 30pallet/20ft
106*70*80CM:60PCS, 4 pallet/20ft
Capacity : 5200-7000lb
Material :
Thickness :
Finshed :
N.W(KG)/PC :14.25
Pcs/Ctn : 1.00
Packing Size（Carton) :
Product Name: Electric Trailer Brake Kit – 12″ – Left and Right Hand Assemblies – 5,200 lbs to 7,000 lbs		 25580/14125A
OIL SEAL, DUST CUP, NUTS		 K08-219-9B
42866UC3-EZ
4 on 4″, bolts 1/2 Bolts pattern: 4 on 4″, bolts 1/2
Packing: 110*105*65CM:210PCS, 30pallet/20ft
Capacity : 2000
Material : G3000
Thickness :
Finshed : Black coating
N.W(KG)/PC : 2.3
Pcs/Ctn : 1.00
Packing Size（Carton):
Product Name: Easy Grease Trailer Idler Hub Assembly for 2K Axles – 4 on 4 – Pre-Greased		 44649/44649
OIL SEAL, DUST CUP, NUTS		 KH-100-07-19
008-091-93
8-91-05UC1-EZ
4 on 4″, bolts 1/2 Bolts pattern: 4 on 4″, bolts 1/2
Packing: 110*105*65CM:210PCS, 30pallet/20ft
Capacity : 2000
Material : G3000
Thickness :
Finshed : DACRO. ZINC, GAL.
N.W(KG)/PC: 2.3
Pcs/Ctn : 1.00
Packing Size（Carton) :
Product Name: Easy Grease Trailer Idler Hub Assembly for 2K Axles – 4 on 4 – Pre-Greased		 44649/44649
OIL SEAL, DUST CUP, NUTS		 H-100-97
5 on 4.5″, bolts 1/2 Bolts pattern: 5 on 4.5″, bolts 1/2
Packing: 110*105*65CM:210PCS, 30pallet/20ft
Capacity : 3500
Material: G3000
Thickness:
Finshed: Black coating
N.W(KG)/PC: 3.1
Pcs/Ctn : 1.00
Packing Size（Carton) :
Product Name : Easy Grease Trailer Idler Hub Assembly for 3.5K Axles – 5 on 4-1/2 – Pre-Greased		 L68149/L44649
OIL SEAL, DUST CUP, NUTS		 KH-545-07-19
84545UC1-EZ
5 on 4.5″, bolts 1/2 Bolts pattern: 5 on 4.5″, bolts 1/2
Packing : 110*105*65CM:210PCS, 30pallet/20ft
Capacity: 3500
Material: G3000
Thickness :
Finshed : DACRO. ZINC, GAL.
N.W(KG)/PC : 3.1
Pcs/Ctn : 1.00
Packing Size（Carton) :
Product Name : Easy Grease Trailer Idler Hub Assembly for 3.5K Axles – 5 on 4-1/2 – Pre-Greased		 L68149/L44649
OIL SEAL, DUST CUP, NUTS		 H-545-97
8-248-50UC1-EZ
6 on 5.5″, bolts 1/2 Bolts pattern: 6 on 5.5″, bolts 1/2
Packing : 96*102*80CM:162PCS, 22pallet/20ft
Capacity : 6000
Material: G3000
Thickness :
Finshed: Black coating
N.W(KG)/PC : 5.7
Pcs/Ctn : 1.00
Packing Size（Carton) :
Product Name : Trailer Idler Hub Assembly for 6,000-lb Axles – 6 on 5-1/2 – Pre-Greased		 25580/15123
OIL SEAL, DUST CUP, NUTS		 K08-213-90
KH-655-07-19
8-213-5UC1
6 on 5.5″, bolts 1/2 Bolts pattern: 6 on 5.5″, bolts 1/2
Packing: 96*102*80CM:162PCS, 22pallet/20ft
Capacity : 6000
Material : G3000
Thickness :
Finshed : DACRO. ZINC, GAL.
N.W(KG)/PC: 5.7
Pcs/Ctn : 1.00
Packing Size（Carton) :
Product Name : Trailer Idler Hub Assembly for 6,000-lb Axles – 6 on 5-1/2 – Pre-Greased		 25580/15123
OIL SEAL, DUST CUP, NUTS		 008-213-9G
8-213-51UC1-EZ
8-213-51UC1
8 on 6.5″, bolts 9/16″ Bolts pattern: 8 on 6.5″, bolts 9/16″
Packing : 92*113*80CM:120PCS, 22pallet/20ft
Capacity : 7000
Material : G3000
Thickness :
Finshed : Black coating
N.W(KG)/PC : 7.4
Pcs/Ctn : 1.00
Packing Size（Carton) :
Product Name : Trailer Idler Hub Assembly for 7,000-lb Axles – 8 on 5-1/2 – Pre-Greased		 25580/14125A
OIL SEAL, DUST CUP, NUTS		 008-231-94
8-231-9UC1-EZ
8 on 6.5″, bolts 9/16″ Bolts pattern: 8 on 6.5″, bolts 9/16″
Packing : 92*113*80CM:120PCS, 22pallet/20ft
Capacity : 7000
Material : G3000
Thickness :
Finshed : DACRO. ZINC, GAL.
N.W(KG)/PC : 7.4
Pcs/Ctn : 1.00
Packing Size（Carton):
Product Name : Trailer Idler Hub Assembly for 7,000-lb Axles – 8 on 5-1/2 – Pre-Greased		 25580/14125A
OIL SEAL, DUST CUP, NUTS		 HUB-865-GALV-7K
