Semi Trailer Axles 22,500lbs 25,000lbs 77-1/2″ Assembly Oil Lube Cup

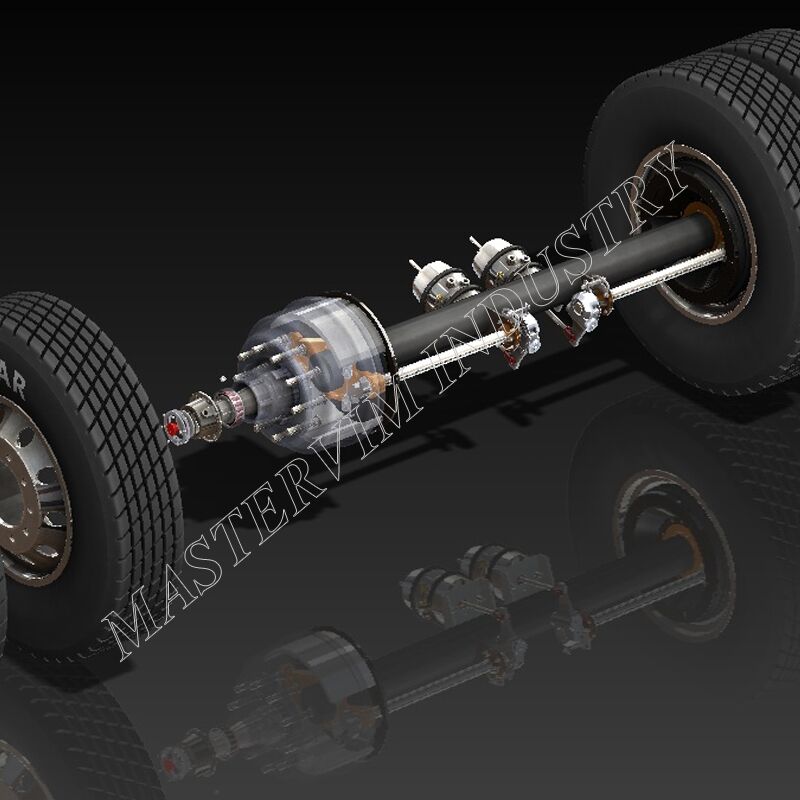

Semi Trailer Axles 22,500lbs 25,000lbs 77-1/2" Assembly Oil Lube Cup

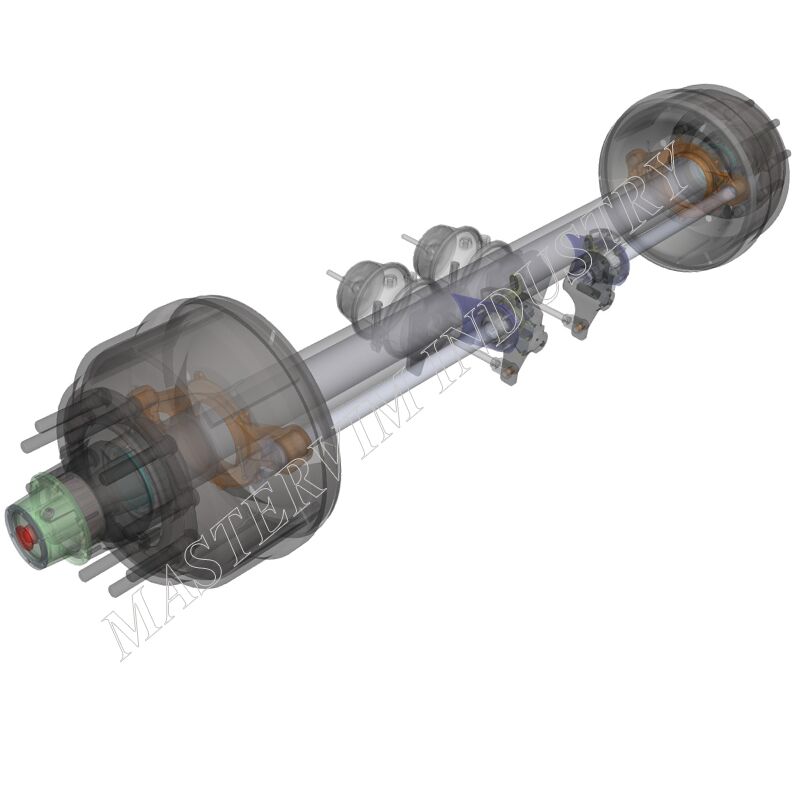

Semi Trailer Axles 22,500lbs 25,000lbs 77-1/2" Assembly Oil Lube Cup - Image 2

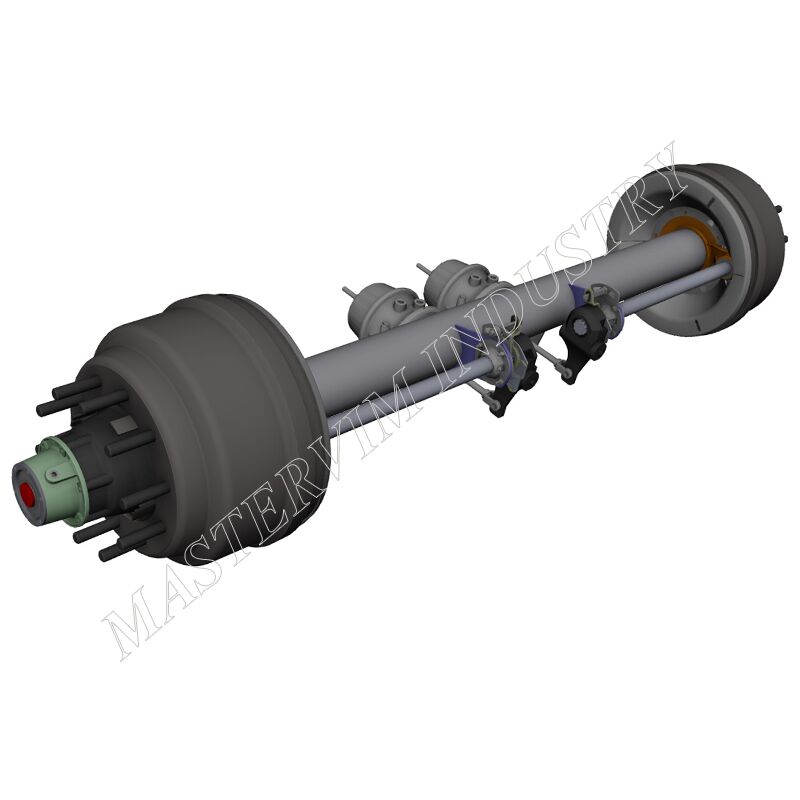

Semi Trailer Axles 22,500lbs 25,000lbs 77-1/2" Assembly Oil Lube Cup - Image 3

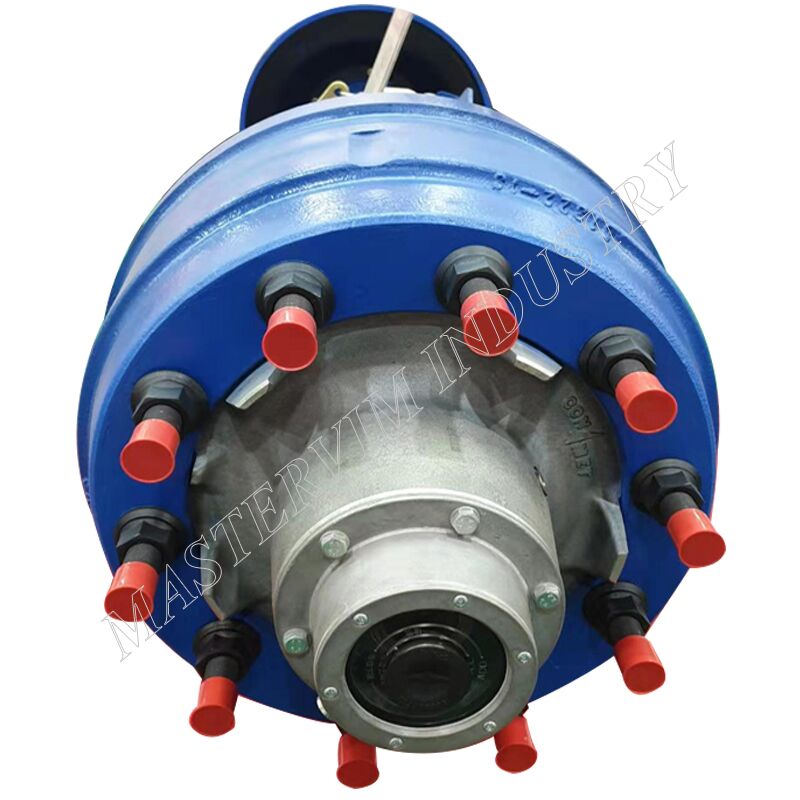

Semi Trailer Axles 22,500lbs 25,000lbs 77-1/2" Assembly Oil Lube Cup - Image 4

Category Spring Axles Tags 22500 lb axle, 22500lb axles, semi trailer axle, semi trailer axles

Mastervim semi-trailers axles 22,500lbs designed for line-haul trucks, hub cup adopted oil lube, excellent cooling performance, automatic slack adjuster, ABS, dual-wheels bolts, FMVSS-121 qualified brake lining, in order to save energy, we could install air inflation on axle end.

Additional information

Load	22,500 lbs, 25,000 lbs
Track	77.50inch
Bolts Number	10 on 11.25inch
Brakes	16.5"x7"
Hub cup	Grease cup, Oil lube cup
Replacement	AXN
Manufacturer	Mastervim

Product Process

Cutting axle tube, spindle bearing position heating, welding bracket, sandblast, surface treatment, assembling hub drum brakes.

Product Details:

Capacity 22,500lb / Capacity 25,000lb

Mastervim semi-trailers axles 22,500lbs designed for line-haul trucks, hub cup adopted oil lube, excellent cooling performance, automatic slack adjuster, ABS, dual-wheels bolts, FMVSS-121 qualified brake lining, in order to save energy, we could install air inflation on axle end.

22,500lb axle details

Tapered spindle N- series
Tube 5″
Track 77.5 inch
P.C.D 10-M22 on 11.25″
Straight axle
Dual-wheel nuts
Semi-fluid grease and Stemco oil lube cup optional
ABS
16.5×7″ drum
4707 brakes lining FMVSS-121
Automatic slack adjuster 28 splines
PSI drilling hole, and plug tap on top

25,000lb axle details

Tapered spindle N- series
Tube 5″
Track 77.5 inch
P.C.D 10-M22 on 11.25″
Straight axle
Dual-wheel nuts
HD oil 80w-90 lube cup
ABS
16.5×7″ drum
4707 brakes lining FMVSS-121
Automatic slack adjuster 28 splines
PSI drilling hole, and plug tap on top
